D Flop

The PomeLabs D Flip-Flop Module (PML-DFF-01) is where combinational logic becomes sequential. A single clock edge captures the state of the D input and holds it at Q until the next rising edge — independent of whatever D does in between. It is the fundamental memory element of digital systems, and this module makes it physically explorable with full access to Q, Q̄, preset, and clear on labeled connectors.

Revision: v1.0 | Part Number: PML-DFF-01 | Series: PomeLabs Core Kit

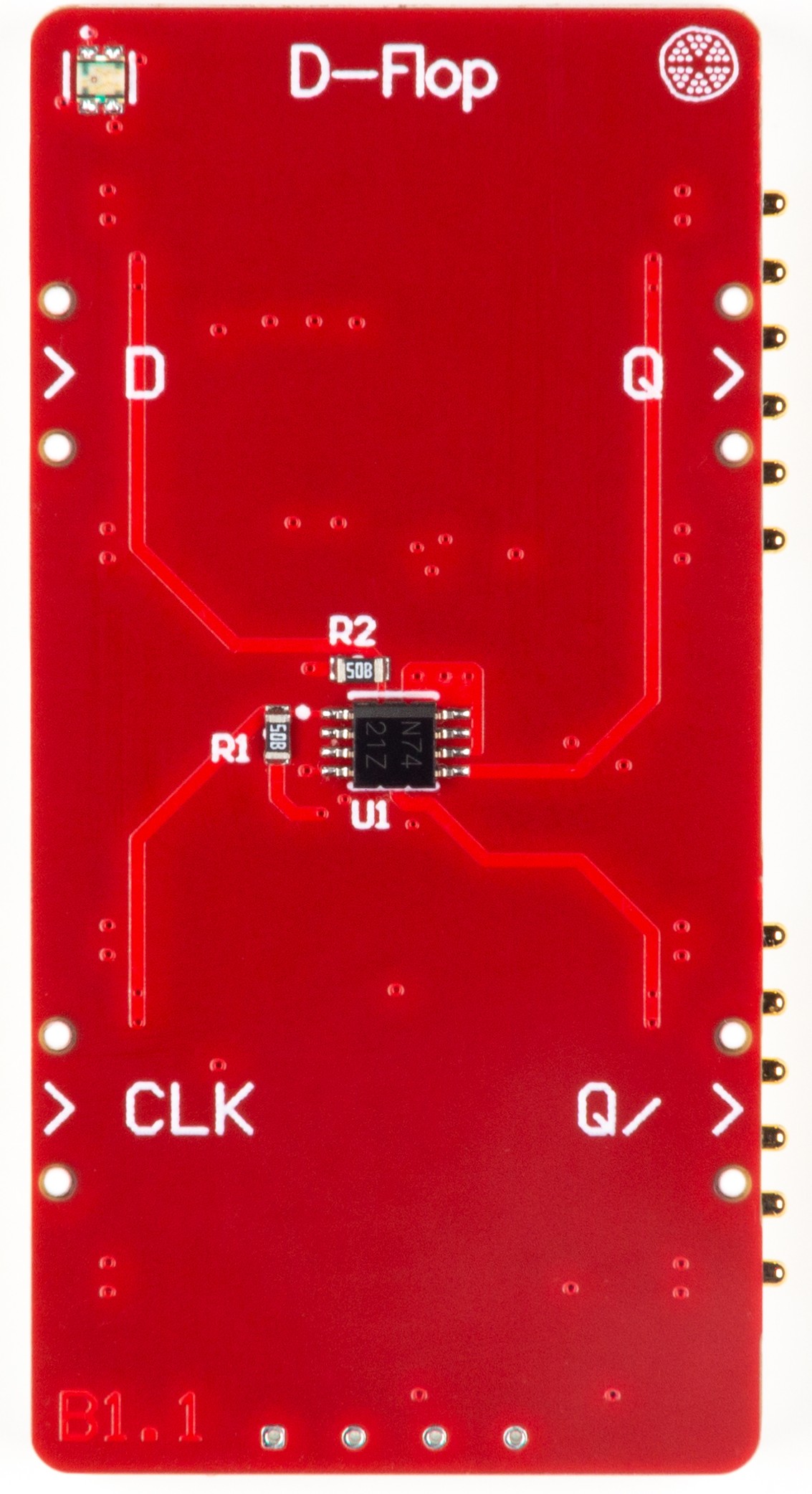

Pinout

D Flip-Flop Pinout

Schematic

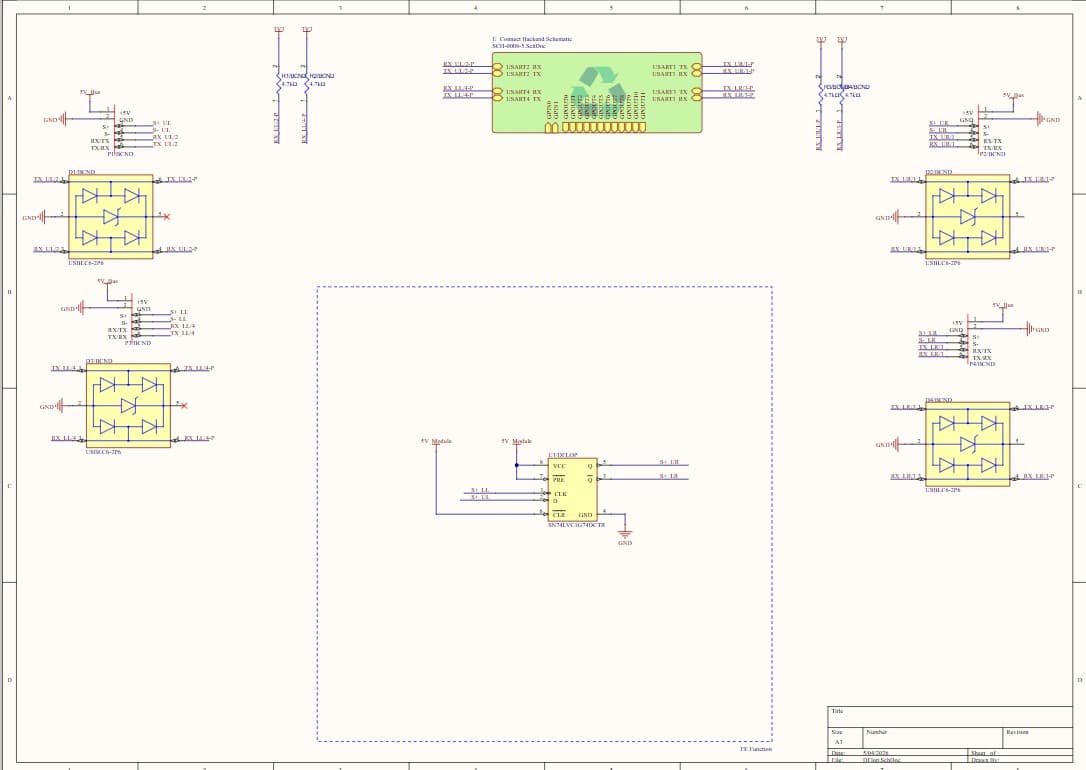

D Flip-Flop Schematic

Digital Twin

In the PomeLabs App, the PML-DFF-01 is mirrored as a digital twin in both the Playground and inside any Connect Activity. Drive the clock and data inputs from the App and watch Q and Q̄ update on the rising edge in real time — step through clock cycles manually or apply a continuous clock signal and observe state capture live.

Controls — parameters you can set from the App

Data input D · pin S+_LL · toggle, HIGH / LOW

Sets the data value to be captured on the next rising clock edge.

Clock input CLK · pin S-_LL · toggle or clock source

Rising edge captures the current state of D into Q. Falling edge and steady state have no effect on Q.

Preset (PRE) · pin L1_D/L2P · toggle, HIGH / LOW (active LOW)

Asynchronous preset — forces Q HIGH and Q̄ LOW immediately, independent of clock. Active LOW; tie HIGH for normal operation.

Clear (CLR) · pin L1_D/L2P · toggle, HIGH / LOW (active LOW)

Asynchronous clear — forces Q LOW and Q̄ HIGH immediately, independent of clock. Active LOW; tie HIGH for normal operation.

UART TX — all four ports · serial data sources

Drives USART1–4 transmit lines through D1–D4 ESD protection to all four node connectors.

Monitors — values streamed back from the module

Q output · pin S+_UR · digital indicator, HIGH / LOW

Current stored state. Updates only on the rising edge of CLK (unless PRE or CLR is asserted).

Q̄ output · pin S+_LR · digital indicator, HIGH / LOW

Complement of Q. Always the logical inverse of Q.

UART RX — all four ports · serial data traces

Inbound data from downstream nodes through D1–D4 ESD protection back to the Backend MCU.

Datasheet

1. Overview

The PML-DFF-01 implements a single positive-edge-triggered D flip-flop using the SN74LVC1G74DCTR (U1) — Texas Instruments' single-gate D flip-flop with asynchronous active-LOW preset (PRE) and clear (CLR).

On each rising edge of the clock signal (S-_LL → CLK), the logic level present at the data input (S+_LL → D) is captured and transferred to output Q (S+_UR). The complementary output Q̄ (S+_LR) is always the logical inverse of Q. Between clock edges, Q holds its value regardless of changes on D — this is the defining property of edge-triggered storage and the basis of all registers, counters, and state machines.

Asynchronous preset and clear override the clock entirely: asserting PRE LOW forces Q HIGH immediately; asserting CLR LOW forces Q LOW immediately. Both are active-LOW and must be tied HIGH for normal clocked operation.

Four USBLC6-2P6 ESD protection devices (D1–D4) protect all four UART ports.

2. BOM Components

Ref.	Type	Value / Part	Role on this module
U1	Single D flip-flop	SN74LVC1G74DCTR (TI)	Positive-edge-triggered D flip-flop. Asynchronous active-LOW PRE and CLR. Both Q and Q̄ outputs. $1.65$ – $5.5\,\mathrm{V}$ supply, inputs accept up to $5.5\,\mathrm{V}$ . SSOP-8 (DCT) package, $2.95 \times 4.0\,\mathrm{mm}$ body.
D1	ESD protection IC	USBLC6-2P6 (ST)	IEC $61000-4-2$ Level $4$ ESD clamp on Upper-Left UART port. $3.5\,\mathrm{pF}$ max. SOT-666.
D2	ESD protection IC	USBLC6-2P6 (ST)	IEC $61000-4-2$ Level $4$ ESD clamp on Upper-Right UART port. Identical to D1.
D3	ESD protection IC	USBLC6-2P6 (ST)	IEC $61000-4-2$ Level $4$ ESD clamp on Lower-Left UART port. Identical to D1.
D4	ESD protection IC	USBLC6-2P6 (ST)	IEC $61000-4-2$ Level $4$ ESD clamp on Lower-Right UART port. Identical to D1.
R1, R2	Resistor	$4.7\,\mathrm{k\Omega}$	Pull-up resistors on UART TX/RX lines to $3.3\,\mathrm{V}$ .
p1–p4	Connector	Node headers	Four node connectors exposing $+5\,\mathrm{V}$ , GND, S+, S−, RX/TX, TX/RX.

3. Electrical Specifications

All values at $25\,\mathrm{{}^\circ C}$ unless otherwise noted. Flip-flop specifications from TI SCES794G (SN74LVC1G74, Rev. G, Sep 2021). ESD protection from ST DS4260 Rev. 7 (USBLC6-2P6, Dec 2021).

3.1 U1 — SN74LVC1G74DCTR

3.1.1 Absolute Maximum Ratings

Exceeding these values may permanently damage the device. Stress ratings only.

Parameter	Max Value	Unit
Supply voltage ( $V_{CC}$ )	$-0.5$ to $6.5$	V
Input voltage ( $V_I$ )	$-0.5$ to $6.5$	V
Output voltage — high-Z or power-off state ( $V_O$ )	$-0.5$ to $6.5$	V
Output voltage — high or low state ( $V_O$ )	$-0.5$ to $V_{CC} + 0.5$	V
Input clamp current ( $I_{IK}$ ), $V_I < 0$	$-50$	mA
Output clamp current ( $I_{OK}$ ), $V_O < 0$	$-50$	mA
Continuous output current ( $I_O$ )	$\pm 50$	mA
Continuous current through $V_{CC}$ or GND	$\pm 100$	mA
Package thermal impedance ( $\theta_{JA}$ ) — DCT package	$220$	°C/W
Storage temperature ( $T_{stg}$ )	$-65$ to $+150$	°C

3.1.2 Recommended Operating Conditions

Parameter	Min	Max	Unit / Notes
Supply voltage ( $V_{CC}$ ) — operating	$1.65$	$5.5$	V
Supply voltage ( $V_{CC}$ ) — data retention only	$1.5$	—	V
Input voltage ( $V_I$ )	$0$	$5.5$	V — inputs $5.5\,\mathrm{V}$ tolerant regardless of $V_{CC}$
Output voltage ( $V_O$ )	$0$	$V_{CC}$	V
High-level input voltage ( $V_{IH}$ ) @ $V_{CC} = 3\,\mathrm{V}$ to $3.6\,\mathrm{V}$	$2.0$	—	V
Low-level input voltage ( $V_{IL}$ ) @ $V_{CC} = 3\,\mathrm{V}$ to $3.6\,\mathrm{V}$	—	$0.8$	V
High-level output current ( $I_{OH}$ ) @ $V_{CC} = 3\,\mathrm{V}$	—	$-24$	mA — sourcing
Low-level output current ( $I_{OL}$ ) @ $V_{CC} = 3\,\mathrm{V}$	—	$24$	mA — sinking
High-level output current ( $I_{OH}$ ) @ $V_{CC} = 4.5\,\mathrm{V}$	—	$-32$	mA — sourcing
Low-level output current ( $I_{OL}$ ) @ $V_{CC} = 4.5\,\mathrm{V}$	—	$32$	mA — sinking
Input transition rise/fall rate ( $\Delta t / \Delta v$ ) @ $V_{CC} = 3.3\,\mathrm{V}$	—	$10$	ns/V
Operating temperature ( $T_A$ )	$-40$	$125$	°C

3.1.3 Timing Requirements & Switching Characteristics

At $V_{CC} = 3.3\,\mathrm{V}$ , $T_A = -40\,\mathrm{{}^\circ C}$ to $85\,\mathrm{{}^\circ C}$ , $C_L = 50\,\mathrm{pF}$ (unless otherwise noted).

Parameter	Min	Max	Condition
Maximum clock frequency ( $f_{clock}$ / $f_{max}$ )	$175$	—	MHz
Clock pulse duration ( $t_w$ , CLK high or low)	$2.7$	—	ns
PRE or CLR LOW pulse duration ( $t_w$ )	$2.7$	—	ns
Data setup time ( $t_{su}$ , D before CLK ↑)	$1.3$	—	ns
PRE/CLR inactive setup time ( $t_{su}$ , before CLK ↑)	$1.2$	—	ns
Data hold time ( $t_h$ , after CLK ↑)	$1.2$	—	ns
Propagation delay ( $t_{pd}$ ) CLK → Q	—	$5.9$	ns
Propagation delay ( $t_{pd}$ ) CLK → Q̄	—	$6.2$	ns
Propagation delay ( $t_{pd}$ ) PRE/CLR LOW → Q or Q̄	—	$5.9$	ns
Propagation delay ( $t_{pd}$ ) CLK → Q @ $V_{CC} = 5\,\mathrm{V}$	—	$4.1$	ns

Quiescent supply current ( $I_{CC}$ ): $10\,\mu\mathrm{A}$ max at $V_I = V_{CC}$ or GND, $I_O = 0$ . Input capacitance ( $C_i$ ): $5\,\mathrm{pF}$ typ at $V_{CC} = 3.3\,\mathrm{V}$ . Power dissipation capacitance ( $C_{pd}$ ): $37\,\mathrm{pF}$ typ at $V_{CC} = 3.3\,\mathrm{V}$ , $f = 10\,\mathrm{MHz}$ .

4. Function Table

Positive-edge-triggered operation. PRE and CLR are asynchronous and active LOW. (Source: TI SCES794G Table 8-1.)

PRE	CLR	CLK	D	Q	Q̄	Description
L	H	X	X	H	L	Asynchronous preset — Q forced HIGH regardless of clock
H	L	X	X	L	H	Asynchronous clear — Q forced LOW regardless of clock
L	L	X	X	H¹	H¹	PRE and CLR both asserted — both outputs forced HIGH (nonstable; does not persist when PRE or CLR returns HIGH)
H	H	↑	H	H	L	Rising edge: D = H captured into Q
H	H	↑	L	L	H	Rising edge: D = L captured into Q
H	H	L	X	Q₀	Q̄₀	No clock edge: Q holds previous state

¹ Per TI SCES794G: this is a nonstable condition rather than strictly forbidden — when one of PRE or CLR is released first, Q resolves to the value driven by the input still asserted. Releasing both simultaneously produces an unpredictable final state.

5. Timing Diagram

Normal clocked operation (PRE = CLR = H):

CLK:  __|‾|___|‾|___|‾|___
D:    _____|‾‾‾‾‾|_______
Q:    _________|‾‾‾‾‾|___   (captured on ↑ edge, held until next ↑ edge)
Q̄:   ‾‾‾‾‾‾‾‾‾|_____|‾‾‾

Asynchronous clear (CLR asserted LOW, independent of CLK):

CLR:  ‾‾‾‾‾|___|‾‾‾‾‾‾‾‾
Q:    ‾‾‾‾‾|_____________   (Q → LOW immediately on CLR↓, no clock needed)
Q̄:   _____|‾‾‾‾‾‾‾‾‾‾‾‾

6. Pin Descriptions

All signal pins are referenced to GND.

Pin / Net Name	Direction	Description
S+_LL	Input	Data input D. Logic level captured into Q on the rising edge of CLK. Level between clock edges has no effect.
S-_LL	Input	Clock input CLK. Rising edge only is active — captures D into Q. Falling edge and steady state do not change Q.
S+_UL	Input	Asynchronous preset (PRE) — active LOW. When LOW: forces Q HIGH and Q̄ LOW immediately, overriding clock. Tie HIGH for normal operation.
S-_UL	Input	Asynchronous clear (CLR) — active LOW. When LOW: forces Q LOW and Q̄ HIGH immediately, overriding clock. Tie HIGH for normal operation.
S+_UR	Output	Q output. Stored state of the flip-flop. Updates only on CLK rising edge (or asynchronous PRE/CLR).
S+_LR	Output	Q̄ output. Always the logical complement of Q.
TX_UL-L / TX_LL-L	Input	UART transmit from Backend MCU (USART1/USART3). Through D1/D3 ESD protection.
RX_UL-L / RX_LL-L	Output	UART receive from Upper-Left and Lower-Left connectors. Through D1/D3 ESD protection.
TX_UR-L / TX_LR-L	Input	UART transmit from Backend MCU (USART2/USART4). Through D2/D4 ESD protection.
RX_UR-L / RX_LR-L	Output	UART receive from Upper-Right and Lower-Right connectors. Through D2/D4 ESD protection.
5V-Module	Power In	$5\,\mathrm{V}$ supply. Powers $V_{CC}$ of U1 and VBUS of D1–D4.
3V3	Power In	$3.3\,\mathrm{V}$ logic rail for pull-up resistors R1–R2 ( $4.7\,\mathrm{k\Omega}$ ).
GND	Ground	Common ground for all ICs and connectors.

7. Connection Guide & Common Errors

Correct power-up sequence:

Connect GND first, shared across all modules on the common bus.
Connect 5V-Module to a regulated $5\,\mathrm{V}$ source to power U1 and the VBUS pins of D1–D4.
Connect the 3V3 rail for the UART pull-up resistors.
Drive PRE (S+_UL) and CLR (S-_UL) HIGH before applying any clock — this prevents spurious state changes during power-up. Both inputs must always be at a defined level (HIGH or LOW); never leave them floating.
Optionally pulse CLR LOW briefly to initialize Q to a known LOW state, then return CLR HIGH.
Apply the data input on S+_LL (D) and the clock signal on S-_LL (CLK). Q updates on the rising edge of CLK; Q̄ is always the logical inverse.

Logic-level reference at $V_{CC} = 3.3\,\mathrm{V}$ : an input must rise above $V_{IH} = 2.0\,\mathrm{V}$ to register as HIGH and fall below $V_{IL} = 0.8\,\mathrm{V}$ to register as LOW. The flip-flop is level-triggered on the clock pin (any input crossing $V_{IH}$ from below counts as a rising edge), so clean, fast clock edges are recommended even though the device does not require a specific rise time.

Common wiring errors and consequences:

Mistake	Symptom	Correction
PRE (S+_UL) or CLR (S-_UL) left floating	Floating CMOS input drifts; the asynchronous override may assert at random and toggle Q without a clock edge	Always drive both PRE and CLR HIGH (e.g. through a pull-up to 3V3 or a logic HIGH source) when not actively asserting them. Never leave them floating.
PRE and CLR both asserted LOW simultaneously	Both Q and Q̄ are driven HIGH — a nonstable condition; the final state when they release is unpredictable if released at the same instant	Avoid asserting PRE and CLR together. If unavoidable, ensure one is released cleanly before the other so the flip-flop settles to the corresponding defined state.
D (S+_LL) changes within the setup/hold window around CLK ↑	Setup/hold violation — the flip-flop can enter a metastable state; Q may take an unbounded time to resolve to a valid logic level	Keep D stable for at least $t_{su} = 1.3\,\mathrm{ns}$ before and $t_h = 1.2\,\mathrm{ns}$ after the CLK rising edge (at $V_{CC} = 3.3\,\mathrm{V}$ ).
Clock pulse too narrow (high or low time below $t_w$ )	The flip-flop may fail to register the edge, or the new Q value may not propagate cleanly	Keep both the HIGH and LOW phases of CLK at least $t_w = 2.7\,\mathrm{ns}$ wide at $V_{CC} = 3.3\,\mathrm{V}$ ( $2\,\mathrm{ns}$ at $5\,\mathrm{V}$ ).
Clock frequency exceeds $f_{max}$	Q fails to capture D correctly — missed transitions, glitches	Keep CLK below $175\,\mathrm{MHz}$ at $3.3\,\mathrm{V}$ or $200\,\mathrm{MHz}$ at $5\,\mathrm{V}$ (per TI SCES794G). Use a flip-flop chain or pipeline at higher frequencies.
Very slow input edges (slower than $10\,\mathrm{ns/V}$ at $V_{CC} = 3.3\,\mathrm{V}$ )	Operation outside the guaranteed input transition rate; CLK in particular may produce double-clocking or unstable Q	Drive CLK from a logic-level source (or a debounced/Schmitt-buffered button). Buffer slow analog-like signals before feeding them to D or CLK.
$V_{CC}$ to U1 exceeds $5.5\,\mathrm{V}$	U1 permanently damaged (absolute max $6.5\,\mathrm{V}$ )	Keep the 5V-Module rail $\leq 5.5\,\mathrm{V}$ .
Input signal on D, CLK, PRE, or CLR exceeds $5.5\,\mathrm{V}$	Input clamp current flows; permanent damage if $I_{IK}$ exceeds $50\,\mathrm{mA}$	Inputs are $5.5\,\mathrm{V}$ tolerant — never exceed it. Add a series resistor if your source can swing higher.
Output Q or Q̄ driving load $> 50\,\mathrm{mA}$	Continuous output current absolute max exceeded — U1 may overheat or fail	Keep $I_O$ on each output within $\pm 50\,\mathrm{mA}$ absolute max. For sustained operation, design for $\pm 24\,\mathrm{mA}$ at $3\,\mathrm{V}$ or $\pm 32\,\mathrm{mA}$ at $4.5\,\mathrm{V}$ .
USBLC6-2P6 VBUS pin on D1–D4 unconnected	ESD protection ineffective — UART pins exposed to direct ESD strikes	Ensure 5V-Module is connected; it powers VBUS of all four ESD ICs.
Powering D, CLK, PRE, or CLR while 5V-Module is OFF	$I_{off}$ circuitry isolates U1 and prevents back-drive damage — designed-in safe condition, not a fault	No action needed; partial-power-down via $I_{off}$ is supported by the device.
